Understanding the Unique Advantages of High-Vacuum Technology
In the realm of vacuum technology, diffusion pumps stand as a testament to engineering ingenuity. These sophisticated devices have been instrumental in advancing various industries, from semiconductor manufacturing to scientific research. With their unique operating principles and distinct capabilities, diffusion pumps offer specific advantages that set them apart from other vacuum pumping technologies.
The world of vacuum pumps is diverse, with each type serving particular applications and pressure ranges. Diffusion pumps, which utilize the momentum transfer of vapor molecules, represent one of the most reliable methods for achieving and maintaining high vacuum conditions. Their operation, though conceptually straightforward, involves complex fluid dynamics that make them particularly effective for specific applications.
Fundamental Operating Principles of Vacuum Pumps
Mechanics of Diffusion Pump Operation

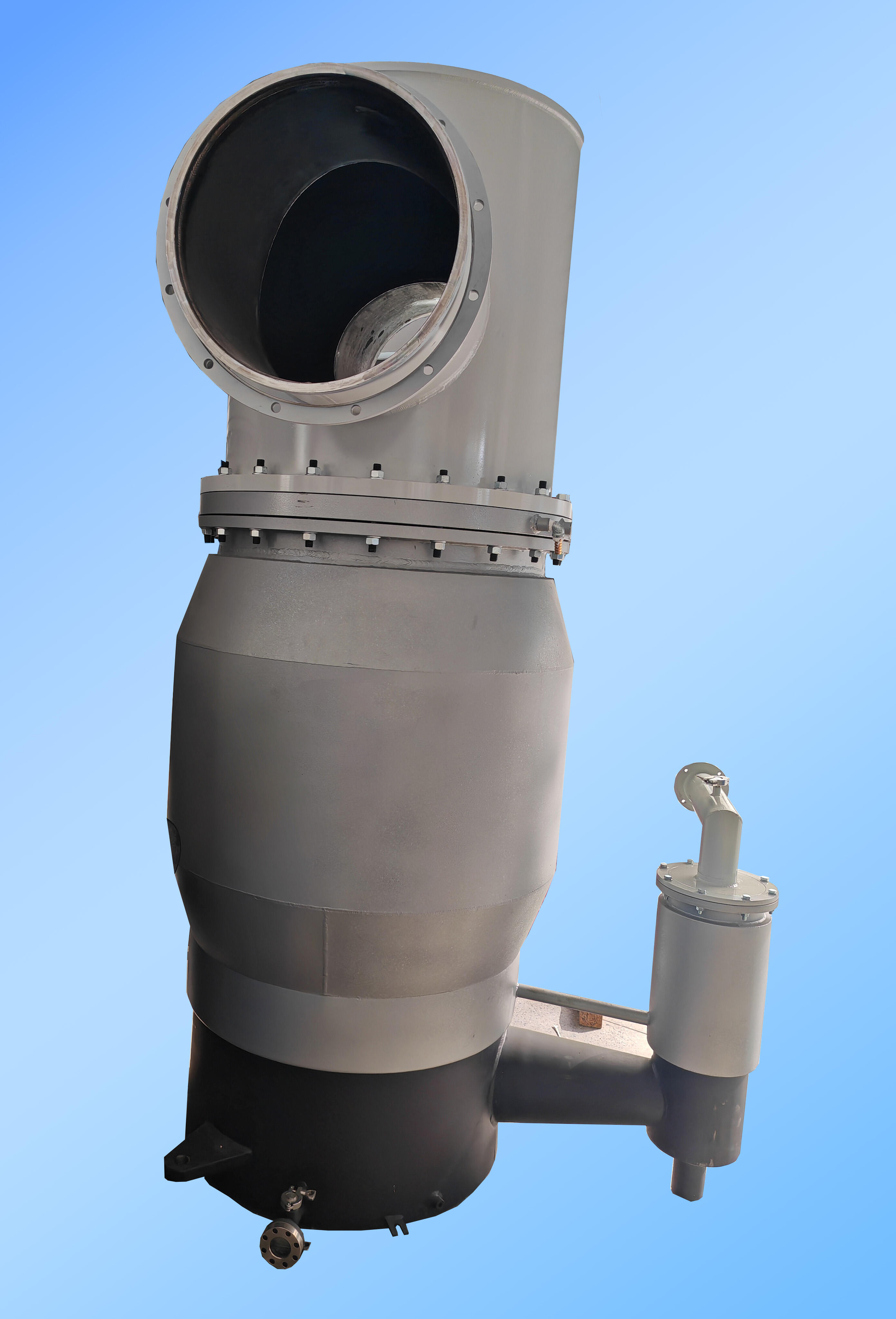

Diffusion pumps operate through a unique vapor-jet mechanism. At their core, these pumps employ a heating element that vaporizes a specialized fluid, typically a silicone oil or mercury in older models. The vaporized fluid rises through a series of nozzles or jets, creating high-velocity vapor streams. When gas molecules from the vacuum chamber collide with these vapor streams, they are directed downward and eventually removed from the system.
The efficiency of diffusion pumps stems from their ability to maintain consistent performance without mechanical moving parts. This design aspect significantly reduces maintenance requirements and extends operational lifespan. The vapor jet system can achieve extremely high vacuum levels, often reaching pressures as low as 10^-7 torr or lower.
Mechanical Pump Fundamentals
In contrast to diffusion pumps, mechanical pumps rely on physical displacement mechanisms. Rotary vane pumps, for instance, use rotating components to trap and compress gas molecules, while scroll pumps employ orbital motion to move gas through increasingly smaller spaces. These mechanical systems excel in rough vacuum applications but generally cannot achieve the ultra-high vacuum levels of diffusion pumps.
The mechanical approach offers quick initial pump-down times and works well for many industrial applications. However, the presence of moving parts introduces wear and maintenance considerations that diffusion pumps largely avoid.
Performance Characteristics and Applications
Vacuum Level Capabilities
Diffusion pumps excel in creating and maintaining high vacuum environments. Their ability to achieve pressures in the range of 10^-7 to 10^-10 torr makes them invaluable for applications requiring extremely low pressures. This capability stems from their unique operating principle, which becomes more efficient as the pressure decreases.
While turbomolecular pumps can achieve similar vacuum levels, diffusion pumps often provide more stable long-term operation and can handle higher gas loads. This stability is particularly crucial in continuous processing applications where consistent vacuum levels must be maintained over extended periods.
Industry-Specific Requirements
Different industries demand specific vacuum pump characteristics. In semiconductor manufacturing, the clean operation of diffusion pumps, when properly maintained, makes them suitable for sensitive processes. Material coating applications benefit from their high throughput and ability to handle condensable vapors effectively.
Research facilities often prefer diffusion pumps for their reliability in maintaining stable vacuum conditions during extended experiments. The absence of mechanical vibration is particularly valuable in applications involving sensitive instrumentation or precise measurements.
Cost and Maintenance Considerations
Initial Investment Analysis
When evaluating vacuum pump options, the initial cost of diffusion pumps often proves competitive. Their simple construction, with few moving parts, typically results in lower manufacturing costs compared to sophisticated mechanical alternatives like turbomolecular pumps. However, the complete system must include backing pumps and cooling systems, which should be factored into the total investment.
The long-term value proposition of diffusion pumps becomes apparent when considering their durability and minimal maintenance requirements. Many systems remain in service for decades with proper care, offsetting the initial investment through reduced replacement needs.
Operational Cost Evaluation
Running costs for diffusion pumps primarily involve power consumption for heating the working fluid and operating the cooling system. While they require continuous power input, their energy efficiency can be optimized through proper sizing and system design. The absence of mechanical wear reduces replacement part costs significantly compared to other pump types.
Maintenance expenses typically focus on periodic fluid changes and cleaning of the pump body. This straightforward maintenance regime contrasts with the more complex service requirements of mechanical pumps, which may need bearing replacements or other mechanical repairs.
Environmental and Safety Considerations
Environmental Impact Assessment
Modern diffusion pumps utilize environmentally friendly silicone oils, marking a significant improvement over historical mercury-based systems. These oils have low toxicity and can be recycled or disposed of properly when replaced. The pumps' long operational life also contributes to reduced environmental impact through decreased manufacturing and replacement requirements.
When comparing environmental footprints, diffusion pumps' steady-state operation often results in more predictable and manageable environmental impacts compared to systems requiring frequent part replacement or maintenance.
Workplace Safety Protocols
Operating diffusion pumps requires attention to specific safety protocols, particularly regarding hot surfaces and proper ventilation. However, their simple design and lack of high-speed moving parts eliminate many of the safety concerns associated with mechanical pump alternatives.
Proper training and safety procedures focus primarily on thermal management and preventing oil contamination. These considerations are generally more straightforward than the complex safety protocols required for high-speed mechanical systems.
Frequently Asked Questions
What makes diffusion pumps suitable for high-vacuum applications?
Diffusion pumps excel in high-vacuum applications due to their vapor-jet mechanism, which becomes more efficient at lower pressures. Their ability to achieve extremely low pressures without mechanical moving parts makes them reliable for maintaining stable vacuum conditions over extended periods.
How often should the working fluid in a diffusion pump be replaced?
The working fluid in diffusion pumps typically needs replacement every 1-2 years, depending on usage patterns and contamination levels. Regular monitoring of fluid color and viscosity can help determine the optimal replacement schedule for specific applications.
Can diffusion pumps operate continuously?
Yes, diffusion pumps are well-suited for continuous operation. Their design, lacking mechanical moving parts, allows for extended running periods with minimal maintenance requirements. Proper cooling system maintenance and periodic fluid checks are essential for continuous operation.
What are the main limitations of diffusion pumps?
The primary limitations include warm-up time requirements, sensitivity to backing pressure fluctuations, and the need for cooling water systems. Additionally, the potential for oil backstreaming must be managed through proper trap design and maintenance procedures.
